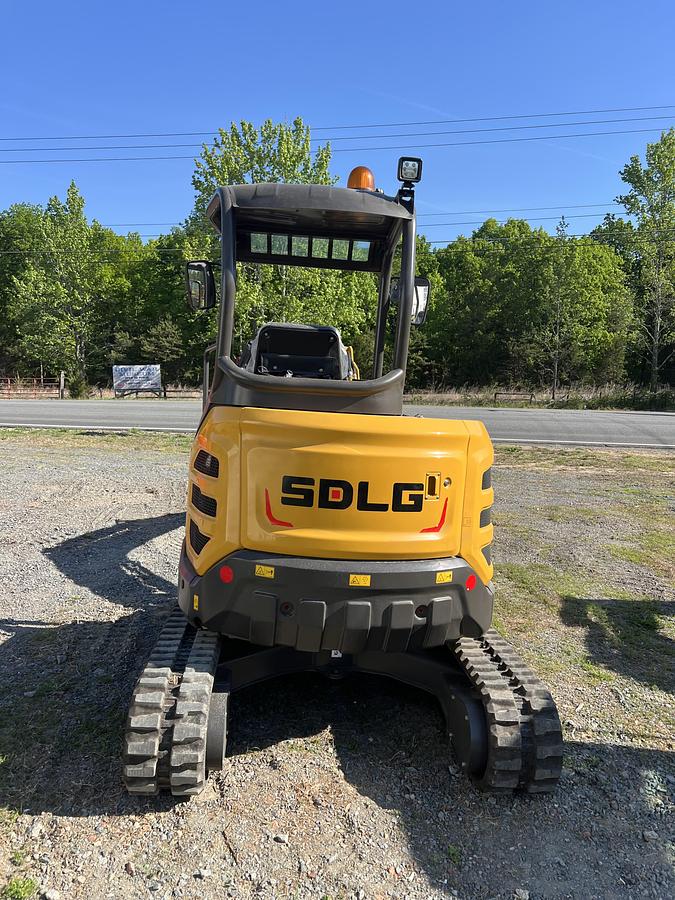

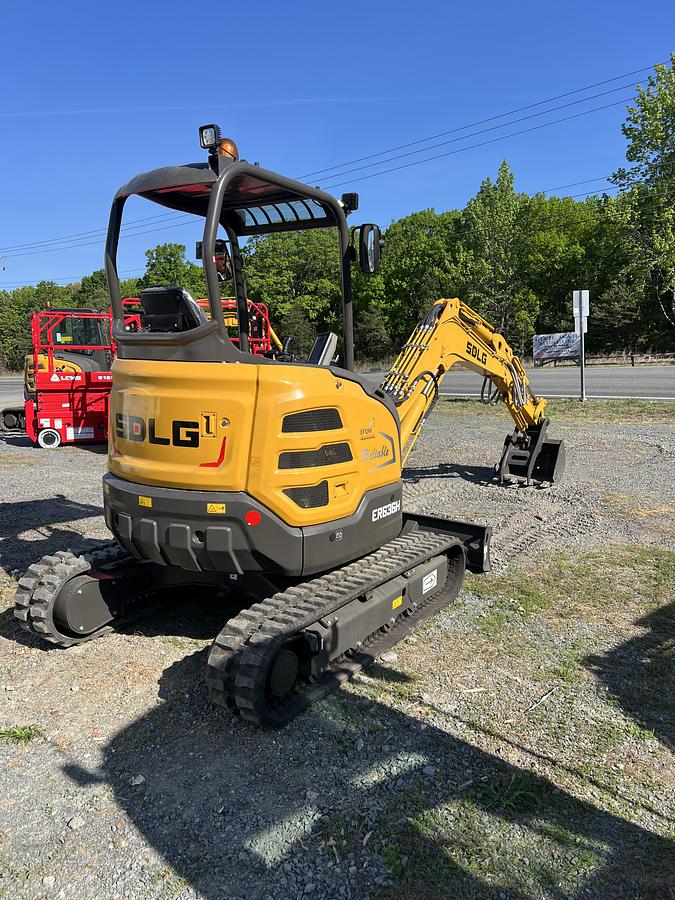

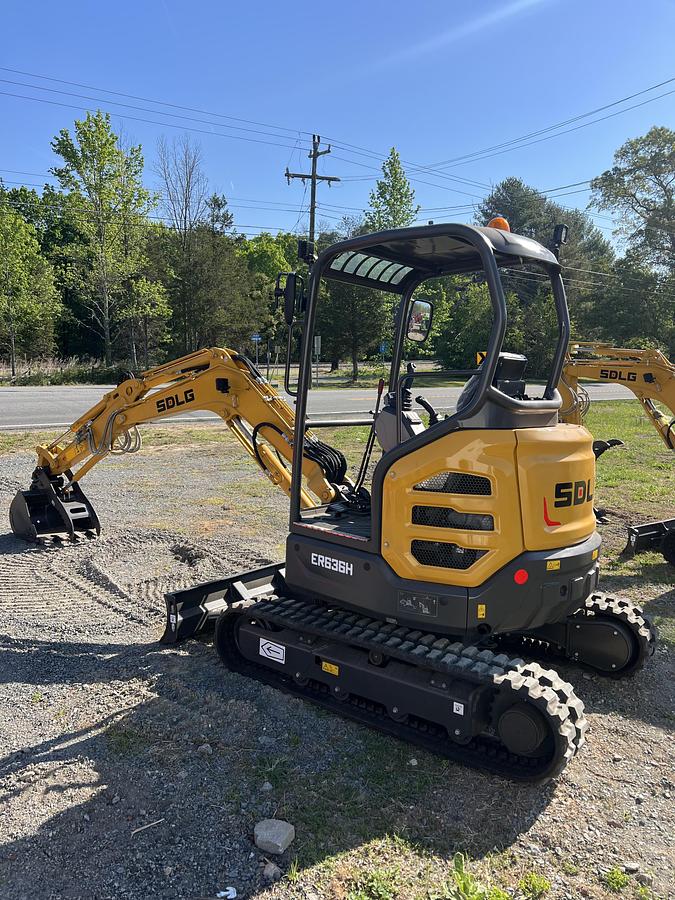

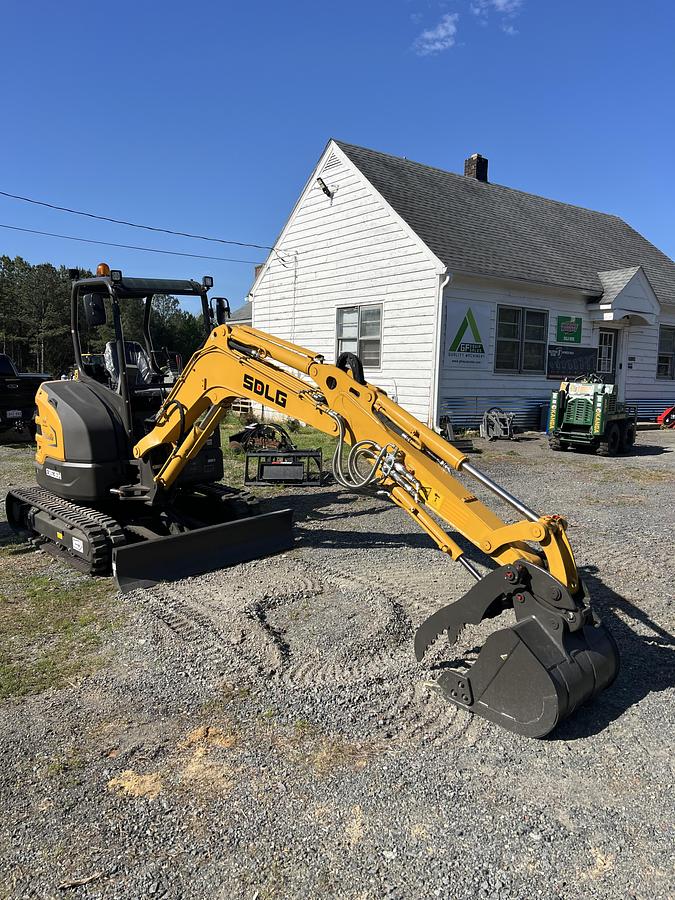

2026 SDLG ER636H Excavator with canopy

### Features

- **Engine & Hydraulic System**:

 The ER636H features a Kubota engine perfectly matched with the hydraulic system, ensuring optimal breakout force and lifting capacity.

- **Travel Motor**:

 Equipped with an optimized large-displacement travel motor that provides high traction force, suitable for various complex working conditions.

- **Pipeline System**:

 Standard units come with X1/X3 pipelines, accommodating a wide range of attachments.

- **Quick Connectors**:

 Auxiliary pipelines include 5 quick connectors, enabling fast and efficient attachment changes.

- **Safety Features**:

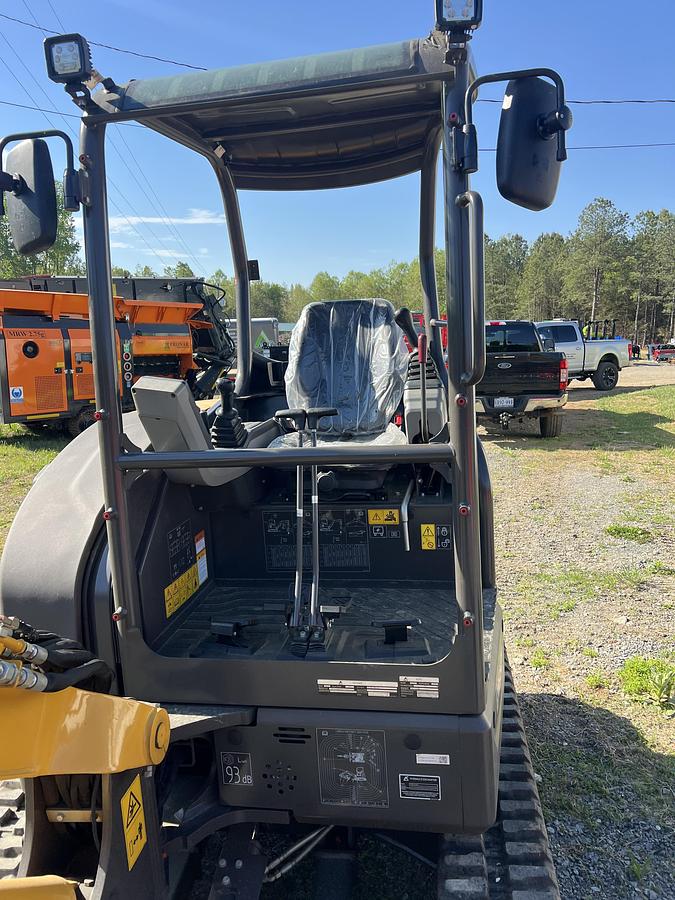

 Includes a ROPS & TOP guard certified canopy, double rearview mirrors, and three LED lights for enhanced safety.

- **Maintenance Accessibility**:

 Centrally located filters make maintenance easier.

### Technical Parameters

- **Operating Weight**: 3,740 kg (8,245 lbs)

- **Engine Model**: Kubota D1703

- **Rated Power**: 18.2 kW (24.4 hp)

- **Rated Engine Speed**: 2,200 rpm

- **Displacement**: 1,647 ml (100.5 in³)

- **Pump Capacity**: 88 L/min (23.3 gal/min)

- **Main Relief Set Pressure**: 240 bar (3,480 psi)

- **Max. Digging Force of Bucket**: 32 kN (7,194 lbf)

- **Max. Digging Force of Arm**: 23.5 kN (5,283 lbf)

- **Travel Low Speed**: 2.1 km/h (1.3 mi/h)

- **Travel High Speed**: 3.7 km/h (2.3 mi/h)

- **Gradeability**: 30°

- **Swing Speed**: 9 r/min

- **Blade Dimensions**:

 - Width: 1,700 mm (66.9 in)

 - Height: 350 mm (14 in)

- **Ground Pressure**: 33.5 kPa (4.9 psi)

- **Fuel Tank Capacity**: 45 L (11.9 gal)

- **Boom Length**: 2,450 mm (8 ft 0.5 in)

- **Arm Length**: 1,400 mm (4 ft 7.1 in)

- **Bucket Capacity**: 0.12 m³ (0.16 yd³)

### Digging Specifications

- **Max. Digging Reach**: 5,355 mm (17 ft 6.8 in)

- **Max. Digging Reach on Ground**: 5,240 mm (17 ft 2.3 in)

- **Max. Cutting Height**: 4,660 mm (15 ft 3.5 in)

- **Max. Dumping Height**: 3,340 mm (10 ft 11.5 in)

- **Max. Digging Depth**: 3,110 mm (10 ft 2.4 in)

- **Max. Digging Depth (Horizontal 8ft)**: 2,610 mm (8 ft 6.8 in)

- **Max. Vertical Wall Digging Depth**: 2,140 mm (7 ft 0.3 in)

### Dimensions

- **Overall Shipping Height**: 2,545 mm (8 ft 4.2 in)

- **Tail Swing Radius**: 860 mm (2 ft 9.9 in)

- **Min. Front Swing Radius**: 2,340 mm (7 ft 8.1 in)

- **Undercarriage Length**: 2,150 mm (7 ft 0.6 in)

- **Overall Shipping Length**: 4,890 mm (16 ft 0.5 in)

- **Track Width**: 300 mm (11.8 in)

- **Overall Shipping Width**: 1,700 mm (5 ft 6.9 in)
