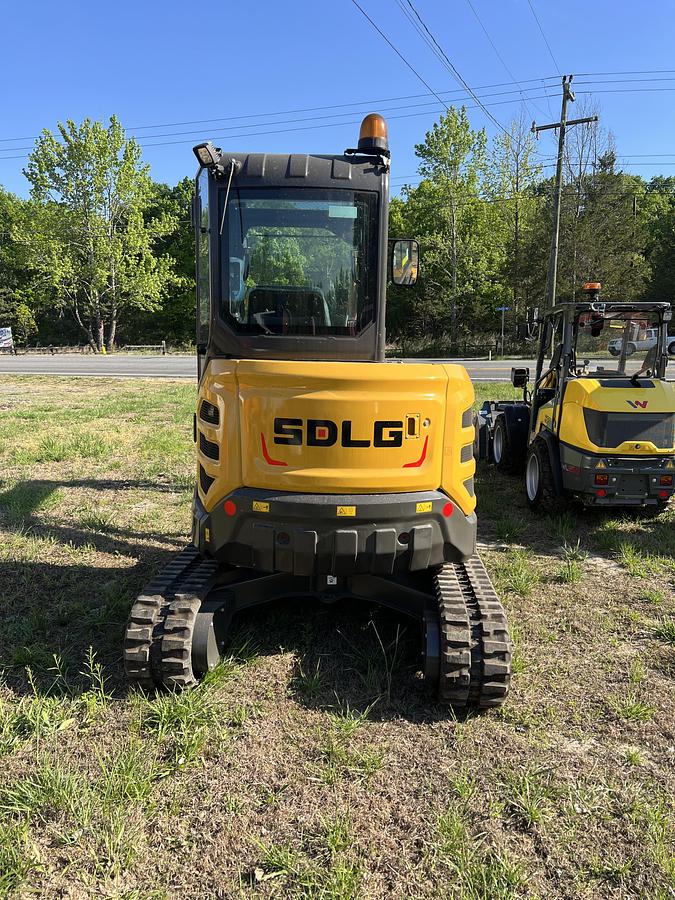

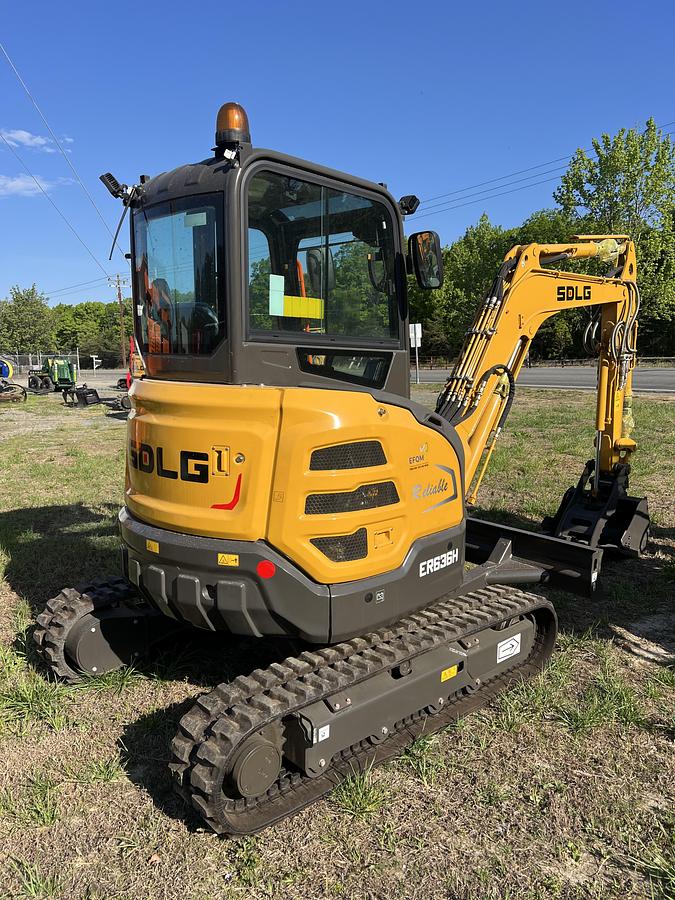

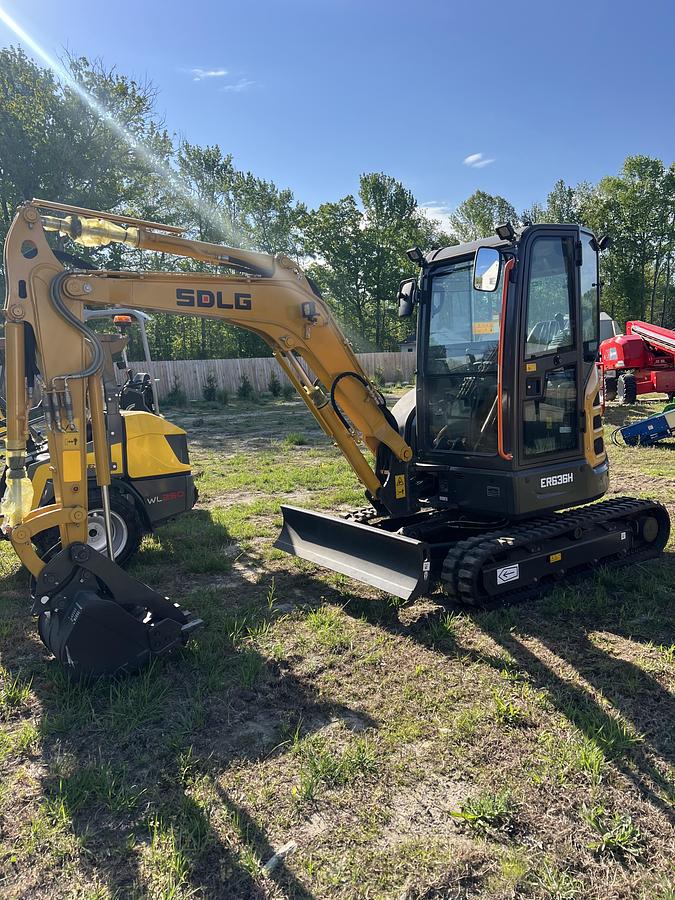

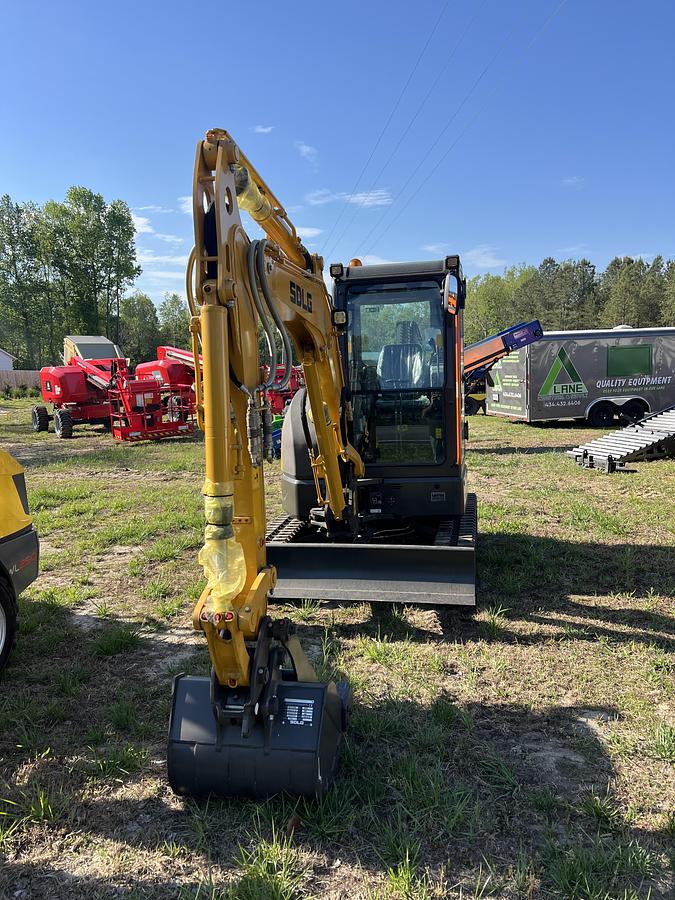

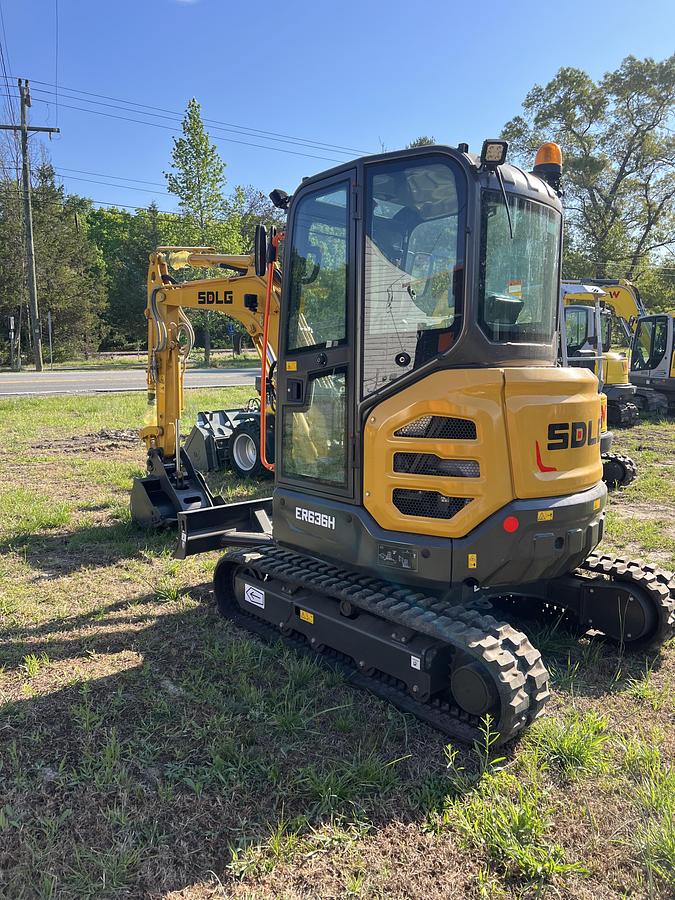

2026 SDLG ER636H Excavator with cab

Features

The ER636H offers a Kubota engine perfectly matched with the hydraulic system, providing optimal break out force and lifting capacity.

Optimized large-displacement travel motor with high traction force, offers a solution for various complex working conditions.

Standard units offer X1/X3 pipelines, meeting a wide range of attachments.

Auxiliary pipelines with 5 quick connectors, allow attachments to be changed quickly and efficiently.

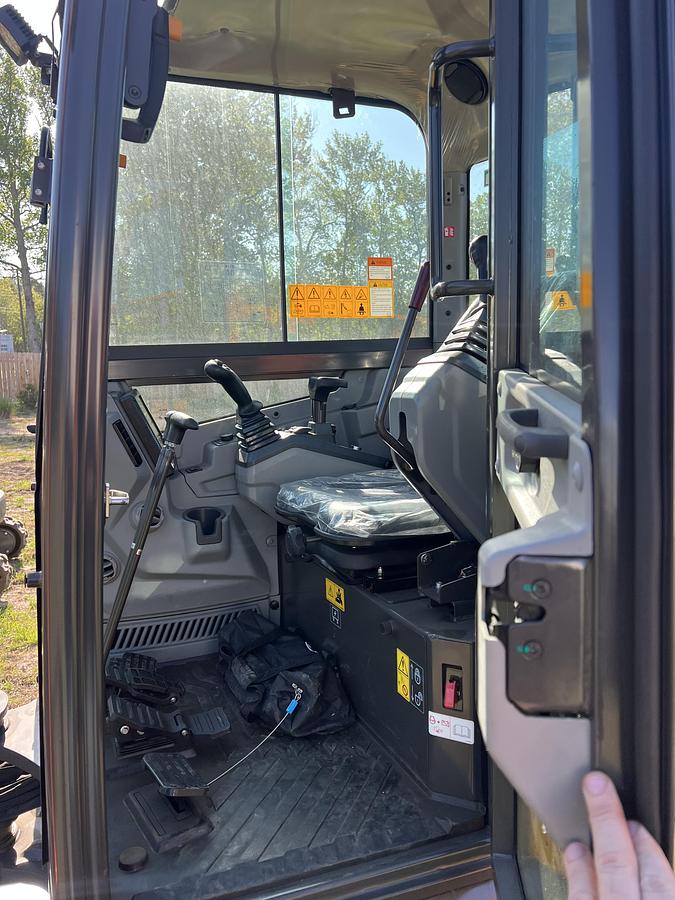

ROPS certified cab with double rearview mirrors and three LED lights.

Filters are centrally located, providing easier maintenance.

Technical Parameter

### Features

- **Engine & Hydraulic System**:

 - Kubota engine perfectly matched with hydraulic system.

 - Provides optimal breakout force and lifting capacity.

- **Travel Motor**:

 - Optimized large-displacement travel motor with high traction force.

 - Suitable for various complex working conditions.

- **Pipeline System**:

 - Standard units equipped with X1/X3 pipelines.

 - Compatible with a wide range of attachments.

- **Auxiliary Pipelines**:

 - Five quick connectors for easy and efficient attachment changes.

- **Cab Design**:

 - ROPS certified cab with double rearview mirrors.

 - Features three LED lights for enhanced visibility.

- **Maintenance**:

 - Centrally located filters for easier maintenance.

### Technical Parameters

- **Fuel Tank**: 45 L (11.9 gal)

- **Track Width**: 300 mm (11.8 in)

- **Undercarriage Length**: 2150 mm (7'0.6 in)

- **Min. Front Swing Radius**: 2340 mm (7'8.1 in)

- **Tail Swing Radius**: 860 mm (2'9.9 in)

- **Max. Vertical Wall Digging Depth**: 2140 mm (7'0.3 in)

- **Max. Digging Depth (Horizontal 8ft)**: 2610 mm (8'6.8 in)

- **Max. Digging Depth**: 3110 mm (10'2.4 in)

- **Max. Dumping Height**: 3340 mm (10'11.5 in)

- **Max. Cutting Height**: 4660 mm (15'3.5 in)

- **Max. Digging Reach on Ground**: 5240 mm (17'2.3 in)

- **Max. Digging Reach**: 5355 mm (14'6.8 in)

- **Bucket Capacity**: 0.12 m³ (0.16 yd³)

- **Arm Length**: 1400 mm (4'7.1 in)

- **Boom Length**: 2450 mm (8'0.5 in)

- **Engine Model**: Kubota D1703

- **Ground Pressure**: 33.5 kPa (4.9 psi)

- **Blade Dimensions**: 1700 mm (66.9 in) x 350 mm (14 in)

- **Swing Speed**: 9 r/min

- **Gradeability**: 30°

- **Travel High Speed**: 3.7 km/h (2.3 mi/h)

- **Travel Low Speed**: 2.1 km/h (1.3 mi/h)

- **Max. Digging Force of Arm**: 23.5 kN (5283 lbf)

- **Max. Digging Force of Bucket**: 32 kN (7194 lbf)

- **Main Relief Set Pressure**: 240 bar (3480 psi)

- **Pump Capacity**: 88 L/min (23.3 gal/min)

- **Displacement**: 1647 ml (100.5 in³)

- **Rated Engine Speed**: 2200 rpm

- **Rated Power**: 18.2 kW (24.4 hp)

- **Operating Weight**: 3950 kg (8708 lbs)
