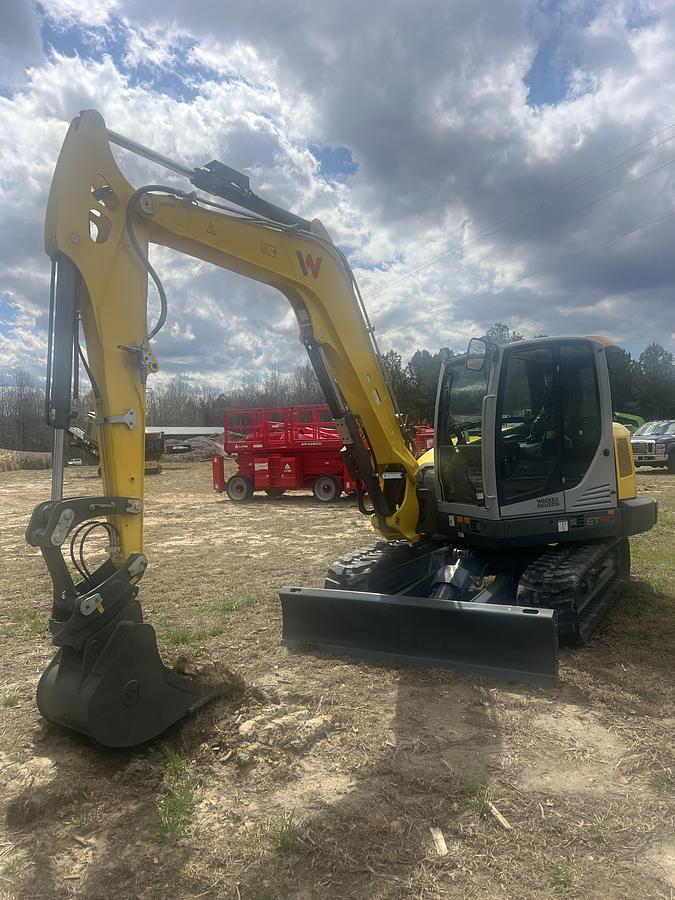

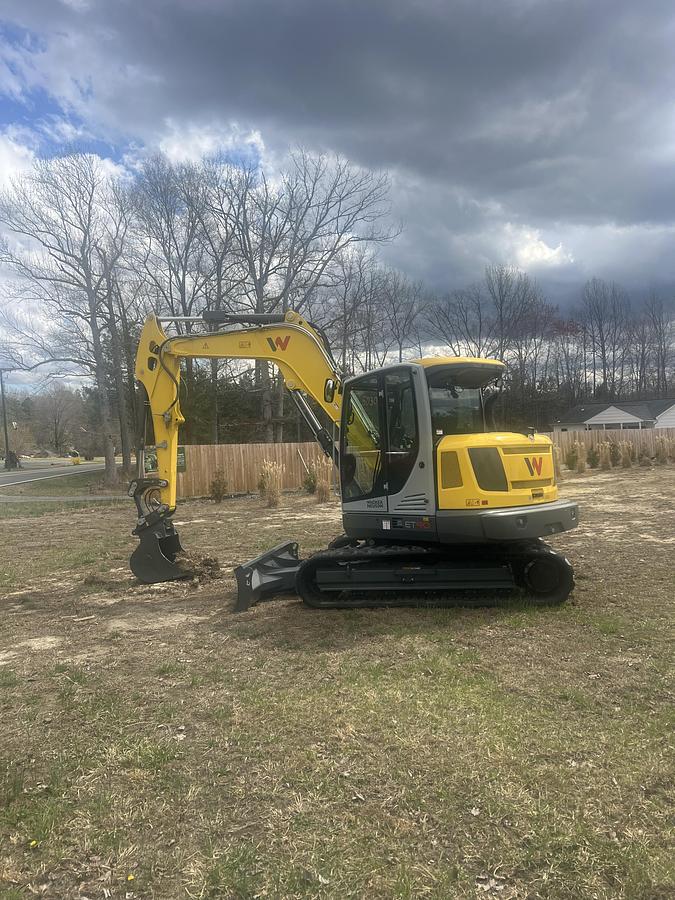

2025 Wacker Neuson ET90

The 2025 Wacker Neuson ET90 is a 9-ton conventional tail excavator known for its "3-pin" bucket linkage system that provides high breakout forces and a 200-degree angle of rotation. Modern models (post-2020) sold in the USA are typically equipped with a Perkins engine, while older versions (pre-2020) often used Deutz powerplants.

Wacker Neuson

 +4

Core Specifications (2025 Model Year)

Feature SpecificationOperating Weight19,202 – 23,162 lbs (depending on configuration)EnginePerkins 904J-E28T, 4-cylinder Turbo DieselEngine Power74.3 hp (Gross) / 69.2 hp (Net)Fuel Tank Capacity22.5 – 23.0 US galTravel Speed3.1 mph (Max)Hydraulic Flow46.4 – 47.6 gpm (Variable displacement pump)

Digging Performance

The ET90 offers two arm configurations—standard and long—which significantly impact reach and depth:

RitchieSpecs

 +1

• Max Digging Depth: 14.2 ft (Standard) up to 15.35 ft (Long Arm).
• Max Reach along Ground: 23.55 ft (Standard) to 25.02 ft (Long Arm).
• Breakout Force: Approximately 16,636 lbf, which is highly competitive for its class.
• RitchieSpecs
•  +4

Key Features and Details

• 3-Pin Bucket Linkage: This unique design increases the bucket's angle of rotation to 200 degrees, allowing for deeper vertical digs and better material retention.
• Compact Design: Features a low center of gravity and a compact tail swing radius of roughly 5.2 ft, making it suitable for confined jobsites.
• Hydraulic Versatility: Comes with up to four optional control circuits and an in-cab electronic control pattern changeover as standard.

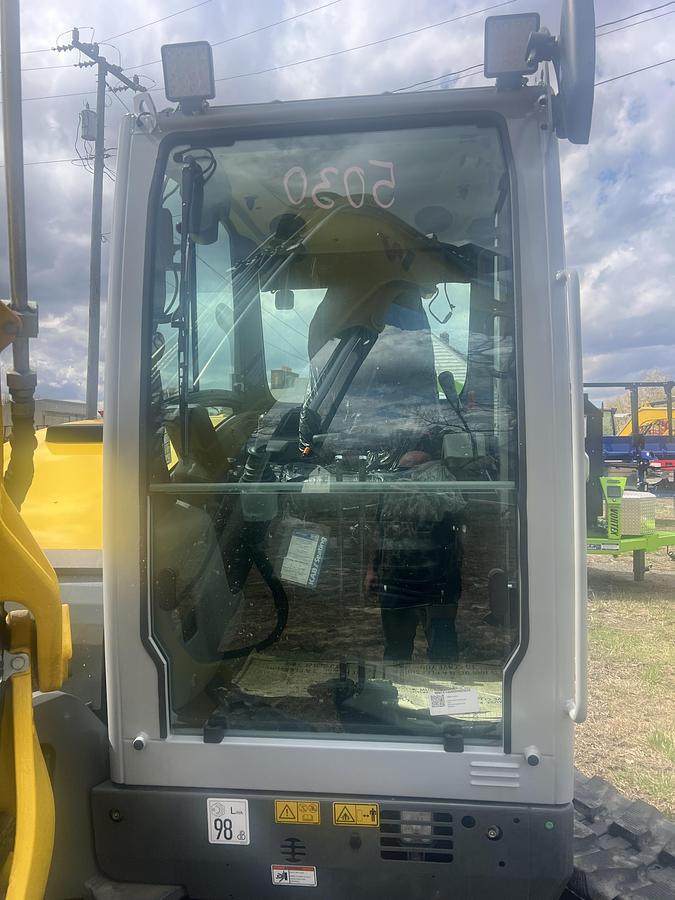

• Operator Comfort: The enclosed cab includes a 3.5-inch color LCD display, air-ride seat, and air conditioning as standard or high-level options.
• Maintenance: A unique tilting operator's platform provides direct access to major maintenance components under the cab.
