2022 IMS double deck screener

2022 IMS double deck screener

$168,500 (USD)

Virginia

orCall 1 434 760 0398

Description

Make: IMS

Model: MS104T

Year:2022


This is a nice compact double deck track screener, made with Quality parts like CAT engines, Sauer Danfoss hyds. This new unit is ready to go to the field . One year 2000hours which ever comes first.


2 year extended warranty as additional option.



Features:



6 Yd (4.6M) Hopper with Variable Speed

40 inch (1000mm) Belt Feeder

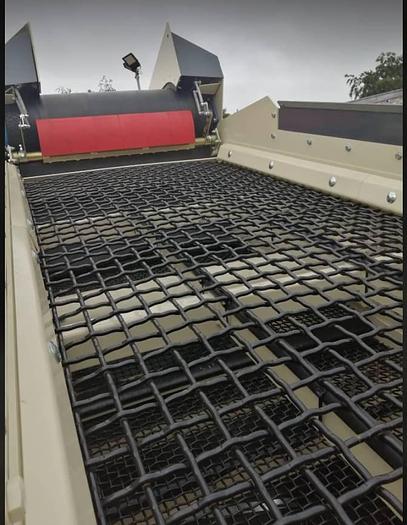

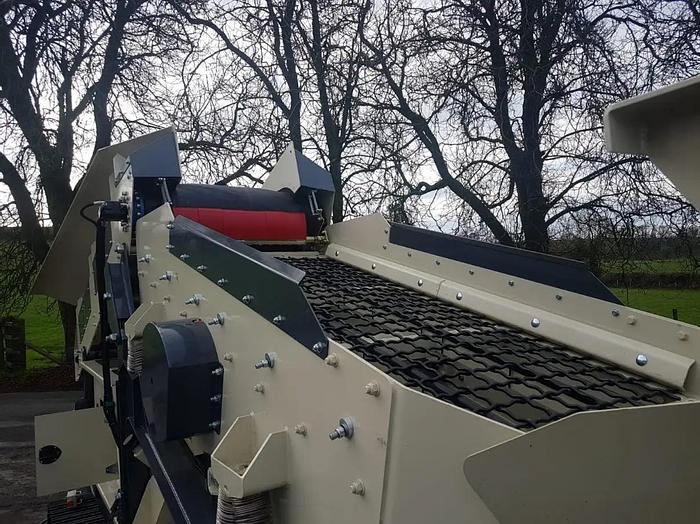

10’ x 4’ 2” (3050mm x 1250mm) Double Deck screen with capacity up to 300 tph (depending on material type, feed size and screen media selection)

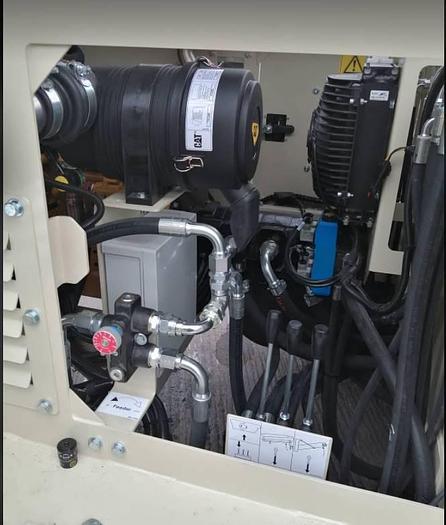

Caterpillar C2.2 74HP (55kW) T4F/Stage V Diesel Engine

Sauer Danfoss Hydraulic Motors

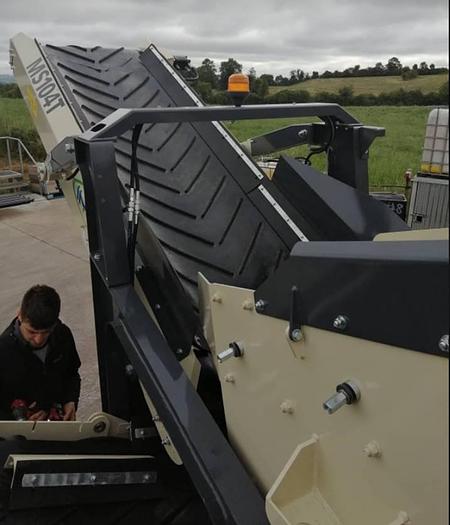

Hydraulic folding wing conveyors

Containerised for transport


Total Weight: 31900lbs (14500kgs)

Working Width: 29’6” (9m)

Working Height: 10’ 3” (3.12m)

Screen Size: 10’ x 4’ 4” (3050mm x 1250mm)

Diesel Power: 75HP (55KW) Tier 4F (USA) /Tier 5 (Europe)

Transport Width: 8’ 5” (2.56m)

Transport Height: 7’ 6” (2.3m)

Transport Length: 34’ 5” (10.5m)

OPTIONS:

Choice of Meshes Punch Plate

Raise Frame


Location: Va


FOB: $168,500.00


I have financing and freight if you need it.


Thanks

Tom Lane

GF Equip Sales LLC

Specifications

ManufacturerIMS
ModelMS104T
Year2022
ConditionNew
